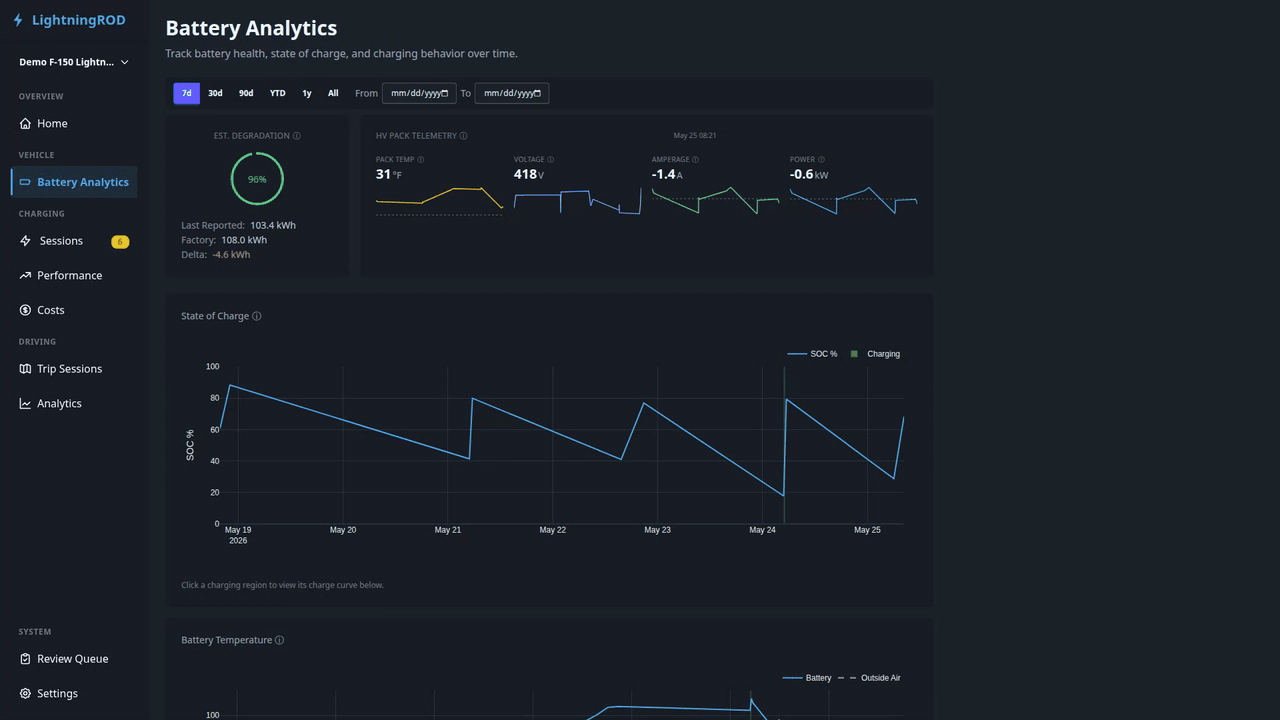

Battery Analytics

The battery analytics page (/battery) tracks long-term battery health, state of charge, charging behavior, and the 12V low-voltage system for the active vehicle.

See it live

Explore this page in the interactive demo.

Date Range Filter

Pick 7d, 30d, 90d, YTD, 1y, or All from the filter bar, or set a custom From/To date pair. The selection is stored in the URL (?range=… or ?date_from=…&date_to=…).

Health Summary Cards

Two summary cards appear at the top:

  • Est. Degradation — current pack capacity as a percentage of the vehicle's rated gross capacity, with last-reported / factory / delta kWh beneath the gauge.
  • HV Pack Telemetry — a 4-metric grid for battery temperature, voltage, amperage, and power. Each metric shows the latest value plus a 7-day sparkline, with a single freshness timestamp for the card.

Cards use the most recent ev_battery_status record. If Home Assistant does not provide a metric, the matching tile shows a "no recent data" state.

Usable vs gross capacity

LightningROD tracks two capacity numbers per vehicle:

  • Usable capacity is the energy you can actually drive with.
  • Gross capacity is the full battery size reported by FordPass.

The health card compares gross to gross so a fresh pack reads close to 100%. If the two values are mixed up, the percentages will be wrong. Both values live on the vehicle record in Settings → Vehicles and can be filled from the preset table.

SOC Timeline

The main chart shows state-of-charge over time, with:

  • Color-coded charging regions -- brighter green areas highlight periods where power was positive, so charging sessions stand out from rest
  • Click-to-drill -- click a charging region to filter the Charge Curve panel below to that session
  • Gap-aware -- data gaps appear as breaks instead of connected lines

Large ranges are simplified on the server to keep the page fast even with years of data.

Battery Temperature Over Time

A dual-line chart below the SOC timeline showing battery pack temperature (solid) and outside-air temperature (dashed) across the active date range. Charging sessions are overlaid as shaded green regions so you can see what the pack was doing during charge.

The card lazy-loads when it scrolls into view.

Charge Curve

A charge curve with SOC % on the X-axis and kW on the Y-axis. The session picker defaults to the most recent session in the active range, regardless of charge type. Switching sessions only swaps the curve — the rest of the page stays in place.

Up to three lines can appear:

  • Reference curve — a pre-configured model curve for the active vehicle (loaded from reference_charge_curves/*.json). Hidden for AC sessions.
  • Average curve — your own average across recent DC sessions.
  • Session curve — the specific session selected above, if any.

AC sessions cap the y-axis at 25 kW; DC sessions keep the 200 kW cap.

A temperature toggle in the legend lets you overlay battery temperature as a second axis.

Fallback

When fewer than 3 detailed battery_status points exist for a session, the app draws a simple line between the start and end SOC. The chart still renders, but the result is less precise.

Battery Degradation

A scatter plot of usable capacity against odometer mileage (km or mi depending on units) with a projected trend line. Date-based degradation is used only when odometer data is missing.

Performance Notes

  • Secondary charts (battery temperature, charge curve, degradation) load when you scroll to them instead of on the initial page load.
  • "All"-range queries use server-side downsampling to keep response times reasonable, even with years of data.
